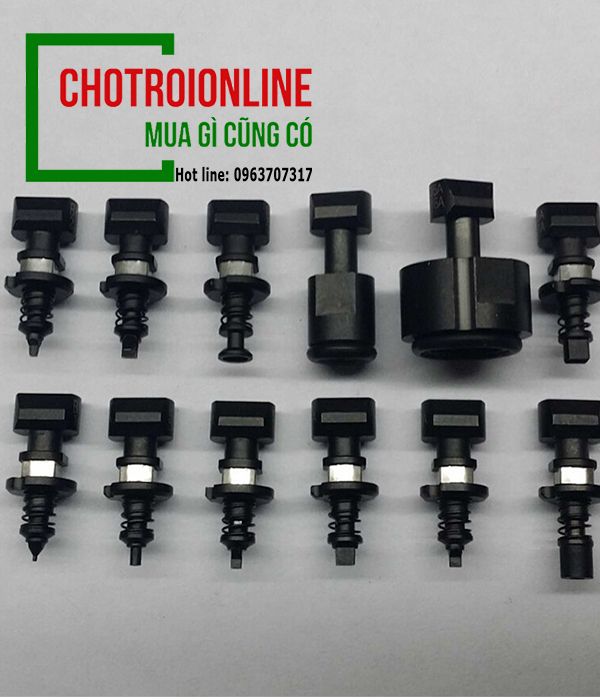

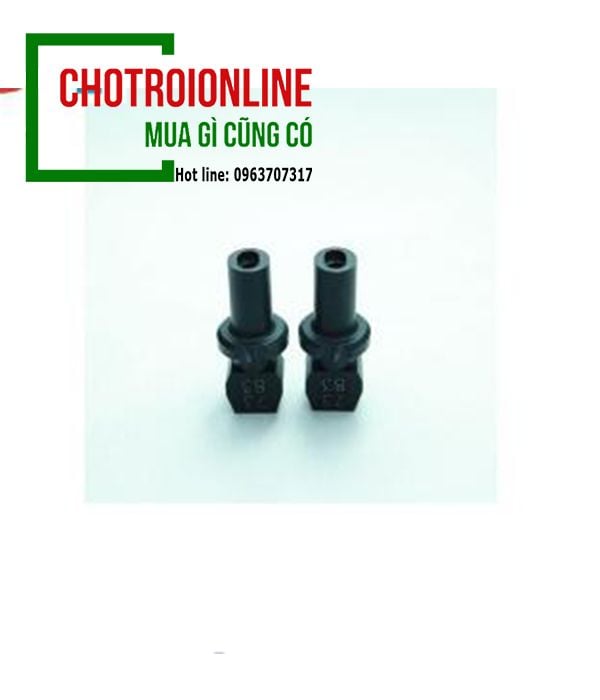

YAMAHA SMT NOZZLES

YAMAHA YS12,YS24,YG12,YG24 Nozzle

Part Number

Description

KHN-M7710-A1X

301A 0.8x0.7(X)

KHN-M7720-A1X

302A 1.7x1.0

KHY-M7740-A0X

303A (314A)Φ4.0/3.0/2.0

KHY-M7750-A0X

304A (315A)3.1x1.1(O-ring)

KHY-M7760-A0X

305A (316A)O-ring

KHY-M7770-A0X

306A (317A)Melf

KHY-M7790-A0X

309A Φ1.2/Φ0.7

KHY-M77A0-A0X

310A 0.3x0.25/Φ0.18

KHY-M7710-A0X

311A 0.75x0.35/0.35x0.18

KHY-M7720-A0X

312A 1.2x0.45/0.6x0.3

KHY-M7730-A0X

313A 1.95x1.25

YAMAHA  YV100X   Nozzles(YV100X,YV180X/YV100XF,YV180XF)

Part Number

Description

KV8-M7710-A0X

71A 0.8x0.7(X)

KV8-M7720-A0X

72A 1.7x1.0(X)

KV8-M7730-A0X

73A Φ4.0/3.0/2.0

KV8-M7740-A0X

74A O-ring

KV8-M7760-A0X

76A Melf

KV8-M7WK-A00

79A Φ1.2/Φ0.7

KV8-M71N1-A00

71F 0.8x0.7(X)

KV8-M71N2-A00

72F 1.7x1.0(X)

KV8-M71N3-A00

73F Φ4.0/3.0/2.0

KV8-M71N9-A00

79F Φ1.2/Φ0.7

YV100-II Nozzles (YVL88)

Part Number

Description

KMO-M711A-02X

31 1.2x1.0(X)

KMO-M711C-00X

32-2 Φ4.0/3.0/2.0

KMO-M711D-00X

33 O-ring

KMO-M711E-00X

34 O-ring

KMO-K71AB-AOX

35 Melf
